Yamaha YHT-4970U 5.1-Channel Dolby Atmos Home Theater System

The Yamaha YHT-4970U delivers immersive surround sound, advanced video performance, and simple setup in one complete home theater package. Built around the powerful Yamaha RX300A AV receiver, this 5.1-channel system supports Dolby Atmos and DTS Virtual:X for expansive three-dimensional sound that transforms movies, TV shows, gaming, and music into a cinematic experience. Featuring HDMI 2.1 connectivity with support for 4K/120 and 8K/60 video, HDR10+, Dolby Vision™, VRR, ALLM, and HDMI eARC, the YHT-4970U is ready for today’s latest entertainment systems and next-generation gaming consoles.

With included front, center, and surround speakers plus a powered subwoofer, the system delivers balanced, room-filling audio with deep bass and crystal-clear dialogue. Yamaha Room Correction automatically optimizes sound performance for your room acoustics, while Bluetooth® Multipoint streaming makes it easy to switch wirelessly between devices. Designed for effortless setup and everyday convenience, the Yamaha YHT-4970U offers a true plug-and-play home theater solution with premium Yamaha sound quality.

Specifications

Model: Yamaha YHT-4970U
System Type: 5.1-channel home theater system
AV Receiver: Yamaha RX300A
Amplification Channels: 5.2
Decodable Channels: 5.1
Output Power: 70W (8 ohms, 20Hz–20kHz, 0.09% THD, 2-ch driven)
Dynamic Power: 145W (6 ohms, 1kHz, 10% THD, 1-ch driven)
Bi-Amp Capable: Yes
Surround Formats: Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS
Post Processing: Dolby Surround
USB Audio Formats: MP3, MPEG-4 AAC, WMA, WAV
HDMI Audio Formats: PCM (8-channel max)
Sound Modes: Pure Direct, Straight, Movie, All Channel Stereo, 2 Channel Stereo, Music, Night
Room Calibration: Yamaha Room Correction
Audio Features: Dialogue Level, Subwoofer Trim, Extra Bass, Lip Sync
HDMI Inputs: 4
HDMI Outputs: 1
HDMI Features: HDMI 2.1, 8K/60Hz, 4K/120Hz, eARC, ARC, VRR, ALLM, QMS, HDCP 2.3, CEC, Auto Lip Sync
HDR Support: HDR10+, Dolby Vision™, Hybrid Log-Gamma (HLG)
Bluetooth: Bluetooth 5.3 with Multipoint
Speaker Outputs: 5 binding post terminals
Subwoofer Outputs: 2 pre-outs
Analog Inputs: 2 RCA
Optical Input: 1
Coaxial Input: 1
USB Port: Audio playback and firmware updates
FM Tuner: Yes
Power Consumption: 260W
Receiver Dimensions: 17-1/8"W x 6-1/8"H x 12-1/2"D
Receiver Weight: 16.8 lbs.
Speaker System Frequency Response: 28Hz–25kHz
Speaker Impedance: 6 ohms
Front Speaker Driver: 2-3/4" full-range cone
Center Speaker Driver: 2-3/4" full-range cone
Surround Speaker Driver: 2-3/4" full-range cone
Subwoofer Driver: 8" cone
Subwoofer Type: Advanced YST II
Subwoofer Output Power: 50W
Subwoofer Dynamic Power: 100W
Included Accessories: Remote Control, Batteries, FM Antenna, Setup Microphone, Microphone Stand, Quick Guides, Speaker Wire, Subwoofer Cable

What It's Great At

Delivering immersive Dolby Atmos surround sound for movies, TV, and gaming
Supporting next-generation gaming with HDMI 2.1, VRR, ALLM, and 4K/120 playback
Providing simple all-in-one home theater setup with included speakers and subwoofer
Optimizing sound automatically for your room using Yamaha Room Correction
Streaming music wirelessly with Bluetooth Multipoint connectivity
Enhancing cinematic realism with HDR10+, Dolby Vision™, and 8K video support

Expanded Key Features List

Complete 5.1-Channel Home Theater Package: Includes the RX300A AV receiver, five matched speakers, powered subwoofer, speaker wire, and subwoofer cable for a true out-of-the-box home theater experience.
Dolby Atmos and DTS Virtual:X: Creates immersive three-dimensional surround sound with enhanced height and spatial audio effects.
HDMI 2.1 Connectivity: Supports advanced 4K/120Hz and 8K/60Hz video playback for modern TVs and gaming consoles.
Advanced HDR Support: Compatible with Dolby Vision™, HDR10+, and Hybrid Log-Gamma for vibrant colors and improved contrast.
Bluetooth Multipoint Streaming: Pair and switch seamlessly between two Bluetooth devices for convenient wireless audio playback.
Automatic Room Correction: Measures room acoustics and adjusts speaker settings automatically for optimized audio performance.
Gaming-Ready Performance: Features ALLM, VRR, and QMS for smoother gameplay with reduced lag and enhanced responsiveness.
Scene Preset Buttons: Save and instantly recall up to four customized listening modes and input settings.
Cinema Sound Modes: Choose from Movie, Music, Stereo, Night, and Pure Direct modes to match your content and listening preferences.
Powered 8-Inch Subwoofer: Delivers impactful bass performance with Yamaha Advanced YST II technology and Twisted Flare Port design.

FAQ Section

Q: Does the Yamaha YHT-4970U support Dolby Atmos?
A: Yes, the system supports Dolby Atmos and DTS Virtual:X for immersive surround sound with enhanced spatial audio effects.

Q: Is this system compatible with next-generation gaming consoles?
A: Absolutely. HDMI 2.1 support includes 4K/120Hz, VRR, ALLM, and QMS for smooth and responsive gaming performance.

Q: Does the package include speakers and a subwoofer?
A: Yes, the YHT-4970U includes five speakers, a powered subwoofer, speaker wire, and a subwoofer cable.

Q: Can I stream music wirelessly?
A: Yes, Bluetooth® Multipoint allows wireless streaming from compatible smartphones, tablets, and laptops with seamless switching between two devices.

Q: What video formats are supported?
A: The system supports 4K/120, 8K/60, Dolby Vision™, HDR10+, and Hybrid Log-Gamma video formats.

Q: How does Yamaha Room Correction work?
A: The included setup microphone measures room acoustics and automatically optimizes speaker settings for the best possible sound performance.

Q: Does the receiver support HDMI eARC?
A: Yes, HDMI eARC allows high-quality audio transmission from your TV to the receiver using a single HDMI cable.

Q: Are different sound modes available?
A: Yes, the receiver includes Movie, Music, Stereo, Night, Pure Direct, and additional listening modes for customized audio performance.

5.1 Home Theater System

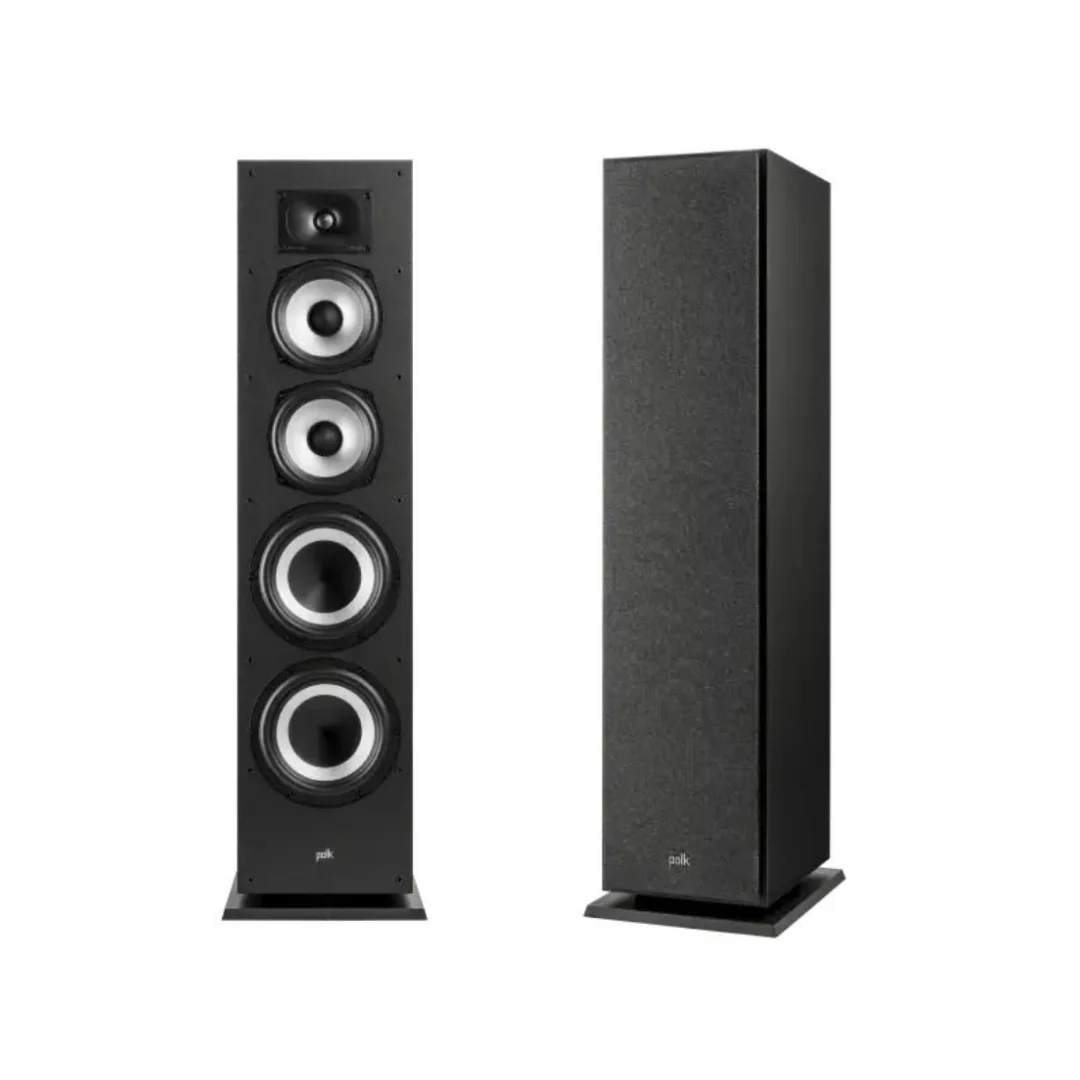

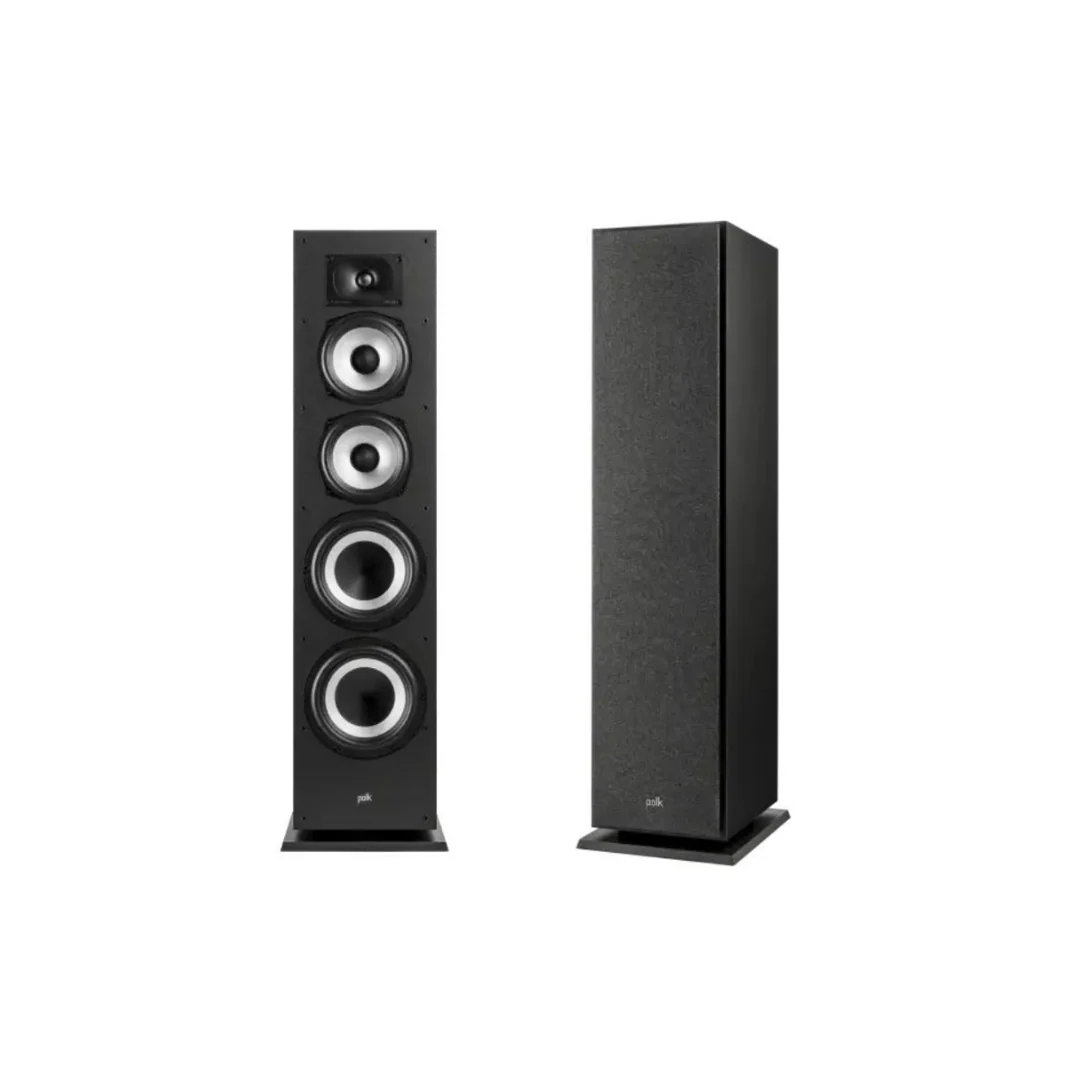

Polk Monitor XT70 5.1 Home Theater System
