Arcam A15 Radia Integrated Amplifier: Unveiling the Power of High-Fidelity Sound

Arcam's A15 Radia integrated amplifier is meticulously crafted to deliver exceptional audio performance for the discerning listener. Backed by over 45 years of amplifier design expertise, the A15 boasts 80 watts per channel, effortlessly driving your favorite tower speakers to fill even larger rooms with vibrant, room-filling sound.

Experience Unmatched Audio Clarity

The Arcam A15 Radia integrated amplifier offers a superior listening experience for both digital and analog audio sources.

• High-Fidelity Performance: Dedicated inputs for high-resolution digital audio ensure pristine audio processing, allowing you to immerse yourself in the rich detail and nuance of your favorite music.
• Superior Wireless Streaming: Stream music wirelessly from your Bluetooth devices using Qualcomm AptX Adaptive technology. This ensures exceptional sound quality, even when streaming compressed files, for a seamless listening experience.

Unwavering Commitment to Vinyl Playback

The A15's meticulously engineered phono stage treats your vinyl collection with care. It ensures your treasured records are reproduced with remarkable warmth and clarity, preserving the authentic analog character you love.

Effortless Connectivity and Modern Design

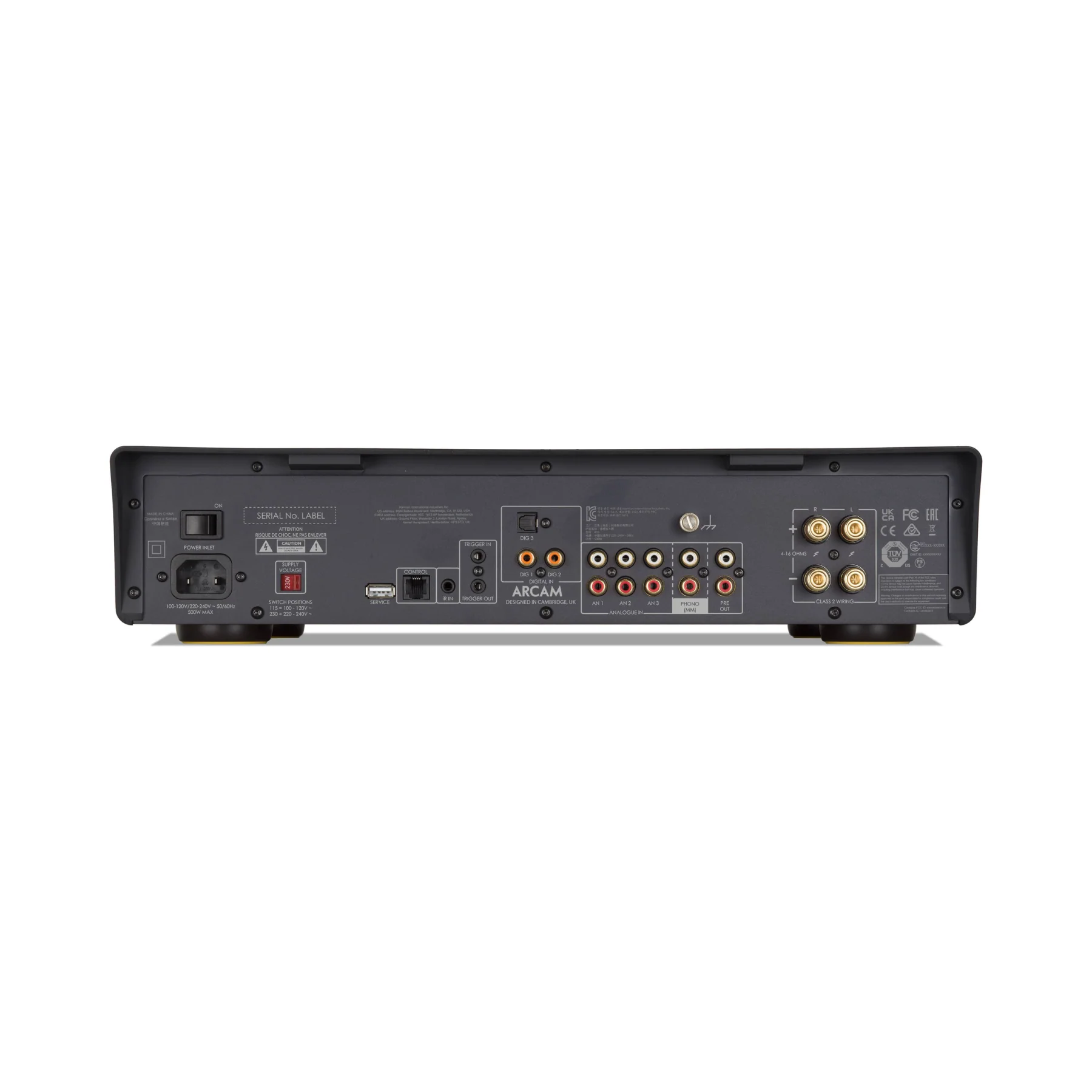

The A15 boasts a comprehensive suite of connections for seamless integration with your existing audio components, including multiple line-level inputs.

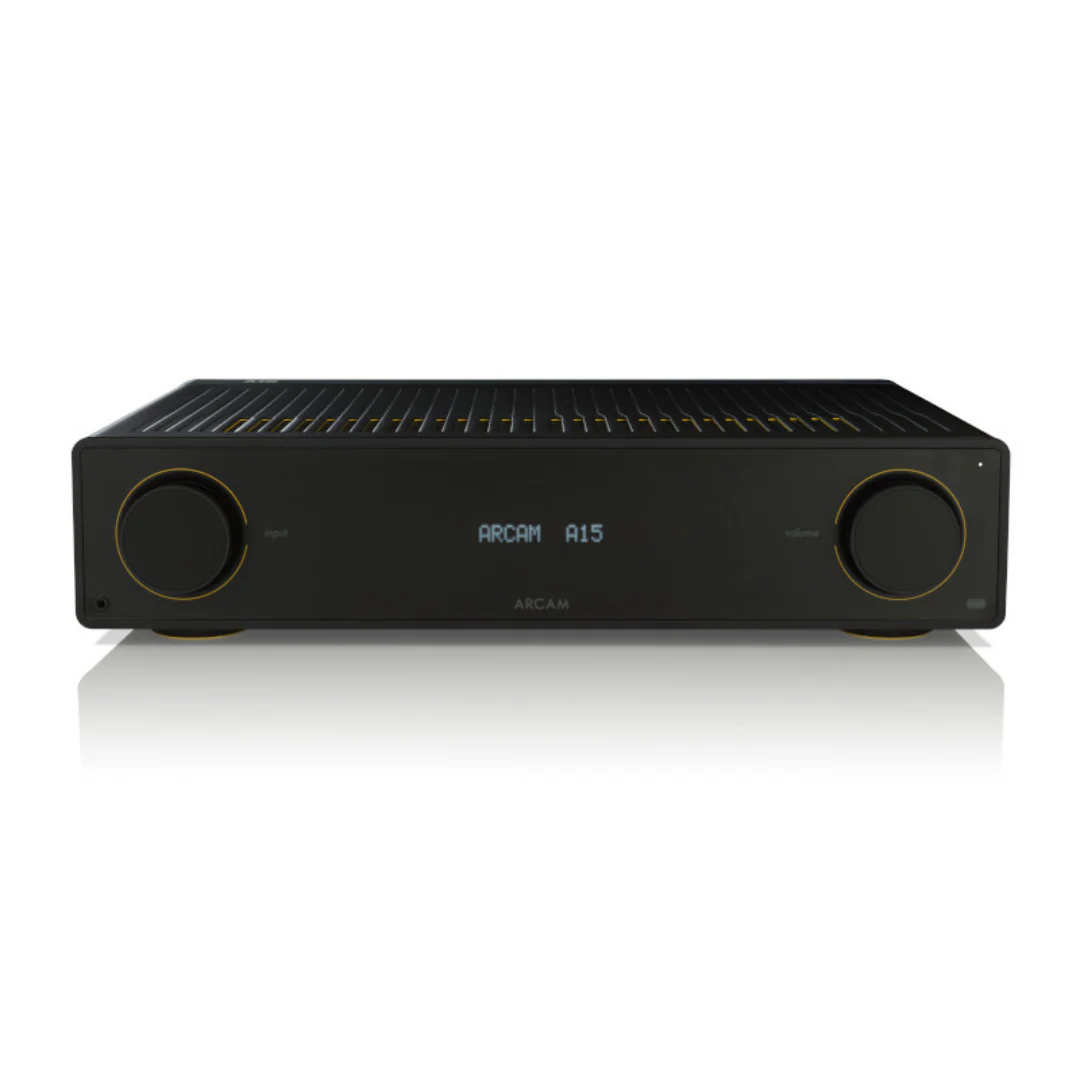

Furthermore, the A15's sleek and modern design complements any listening environment, making a sophisticated statement in your home theater setup.

Elevate your audio experience with the Arcam A15 Radia integrated amplifier. Immerse yourself in the power, purity, and detail of high-fidelity sound.

Arcam A15 Radia Integrated Amplifier Specifications

Continuous Power Output (0.5% THD), Per Channel:

• 2 channels driven, 20Hz - 20kHz, 8Ω: 80W
• 2 channels driven, 1kHz, 4Ω: 120W

Harmonic Distortion:

• 80% power, 8Ω at 1kHz: 0.002%

Analog Inputs:

• Number of inputs: 3 (RCA pairs)
• Signal/noise ratio (A-wtd, ref. 50W, 1V input): 106dB
• Frequency response: 20Hz—20kHz ± 0.2dB

Phono (MM) Input:

• Input impedance: 47kΩ + 100pF
• Frequency response (ref. RIAA curve): 20Hz—20kHz ± 1dB
• Signal/noise ratio (A-wtd, ref. 50W, 0dBFS): 109dB

Digital Inputs:

• Supported Sample Rates (kHz):
  • Coaxial (RCA): 192, 176.4, 96, 88.2, 48, 44.1
  • Optical (Toslink): 192, 176.4, 96, 88.2, 48, 44.1
• Bit Depths (bit): 24, 16
• Frequency response (filter 1): 20Hz—20kHz ± 0.2dB
• Signal/noise ratio (A-wtd, ref. 50W, 0dBFS): 109dB

Headphone Output:

• Maximum output level (RMS) into 32Ω/300Ω: 2.5V/5Vrms
• Load range: 16Ω - 2kΩ

General:

• Mains voltage: 100V or 110–120V or 220–240V, 50–60Hz
• Power consumption (maximum): 500W
• Power consumption (standby): <0.5W
• Dimensions W x D (including speaker terminals) x H (including feet): 431 x 344 x 98mm
• Weight (net): 10kg
• Weight (packed): 13kg

Supplied Accessories:

• Mains lead(s)
• Remote control with 2 x AAA batteries
• Quick Start Guide
• Important Safety Instructions
